FEATURE
For basic cases, a compact and
lightweight single-piece kit
lightweight single-piece kit
Surgical Simple Kit 2
Kit Components
Click on the image area or the list below.
Torque Wrench
Used for applying precise torque when placing implants or tightening components.
- HTW
1.2 HEX Driver
Wrench-compatible hex driver for manual adjustments.
- HHR12LW
Lindemann Drill
Useful for modifying the initial placement path or expanding the guide hole.
- HLD22C
Twist Drill S2
Basic form used for initial path formation and guiding the direction of the osteotomy.
- HTD33CS2
- HTD38CS2
- HTD43CS2
- HTD46CS2

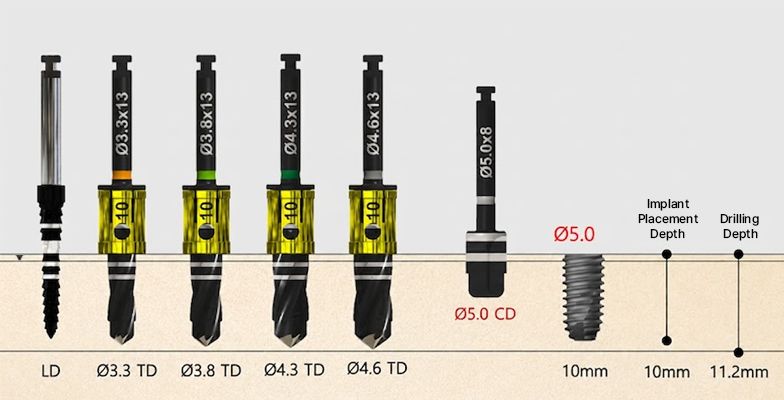

Cortical Drill S2
Used for enlarging the cortical bone to relieve stress on the fixture.
- HCD50CS2
Drill Extension
Extends the drill length in hard-to-reach areas of the oral cavity.
- HDE
NoMount Driver Engine
Engine-driven instrument designed for fixture placement.
- HNRSE
- HNNRLE (*Narrow)
NoMount Driver Wrench
Wrench-driven instrument for manual control.
- HNRLW
- HNNRLW (*Narrow)
Drill Stopper S2
Prevents excessive drilling depth to safely protect the membrane.
- HDS07CS2
- HDS08CS2
- HDS010CS2
- HDS11CS2

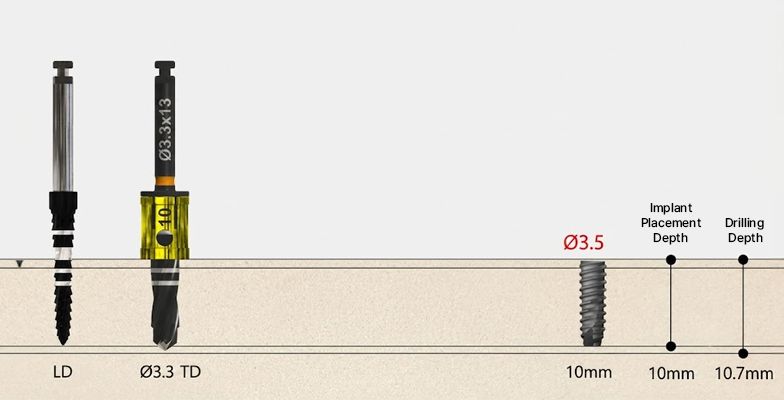

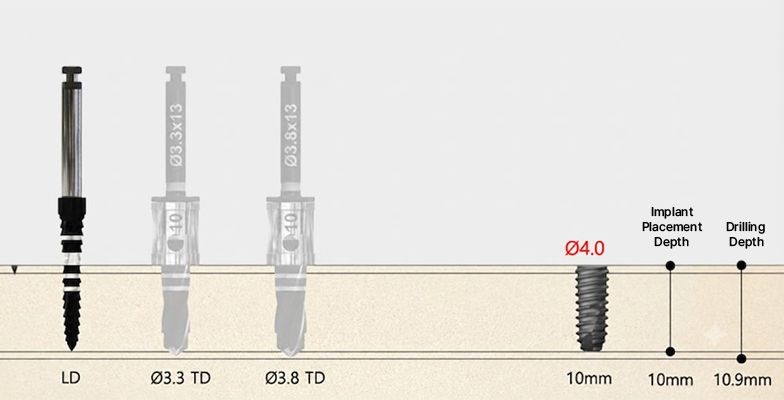

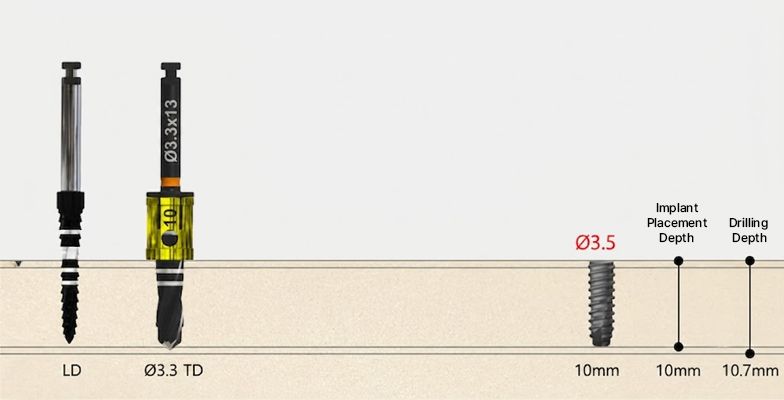

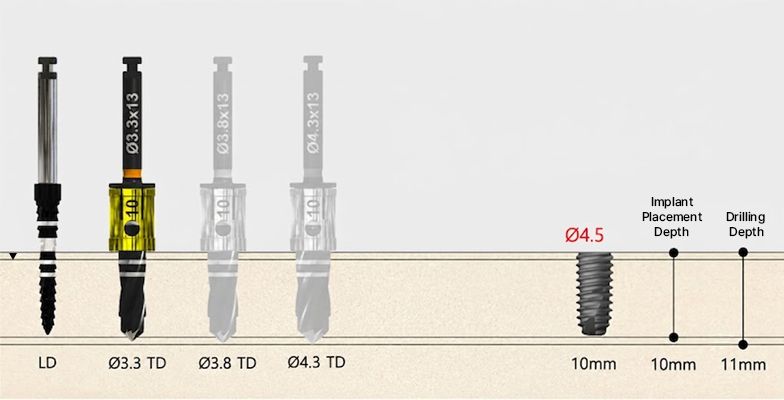

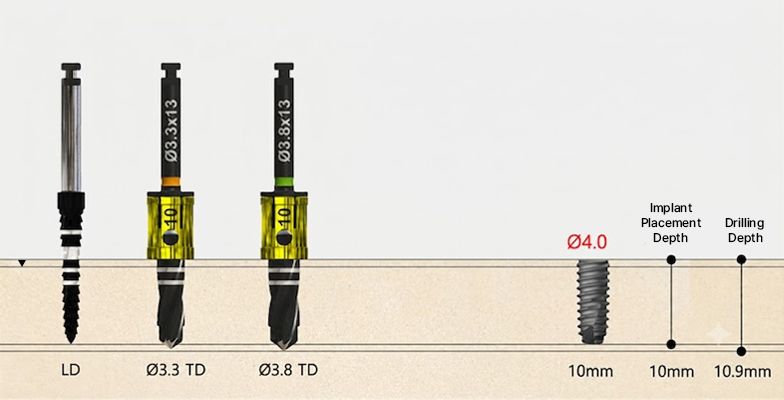

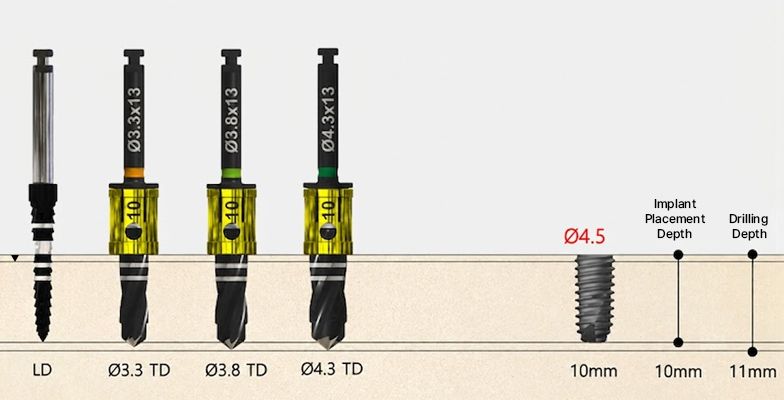

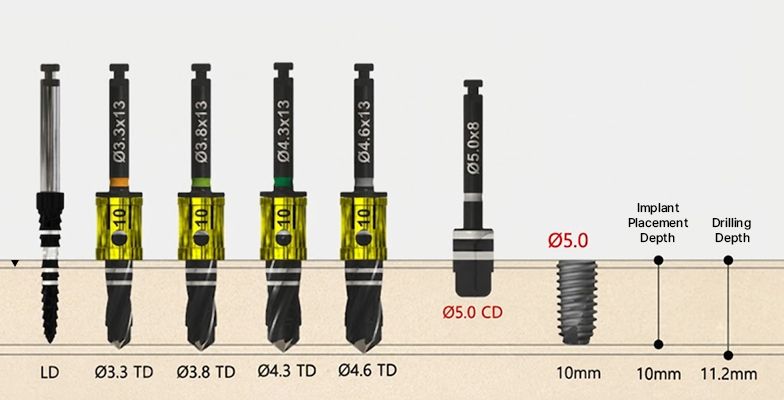

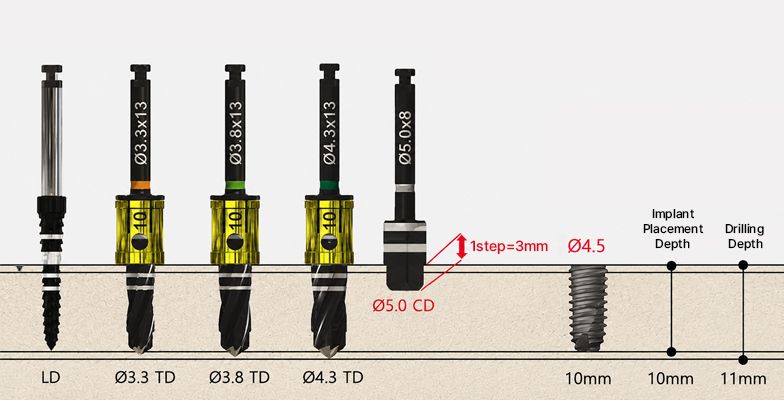

Drilling

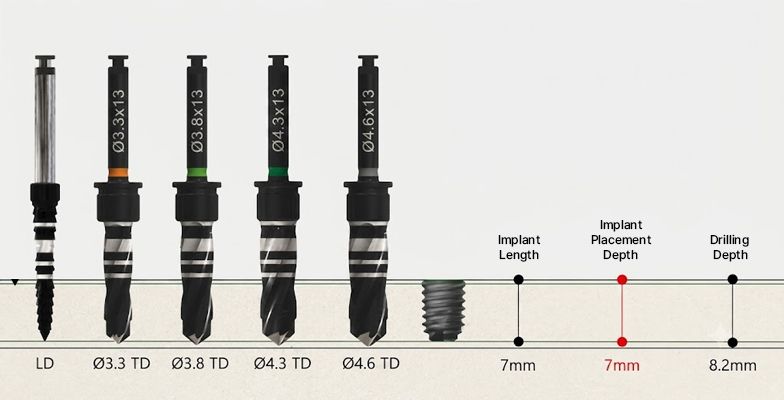

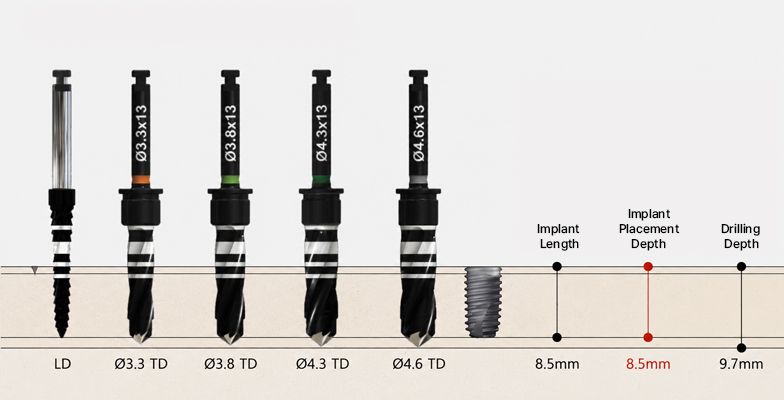

LＷ 7mm Basic Protocol
| Drill | Y-DIM | DRILLING DEPTH |
|---|---|---|
| Ø3.3 TD | 0.7 | Implant Length + Y-DIM |
| Ø3.8 TD | 0.9 | |
| Ø4.3 TD | 1.0 | |
| Ø4.6 TD | 1.2 |

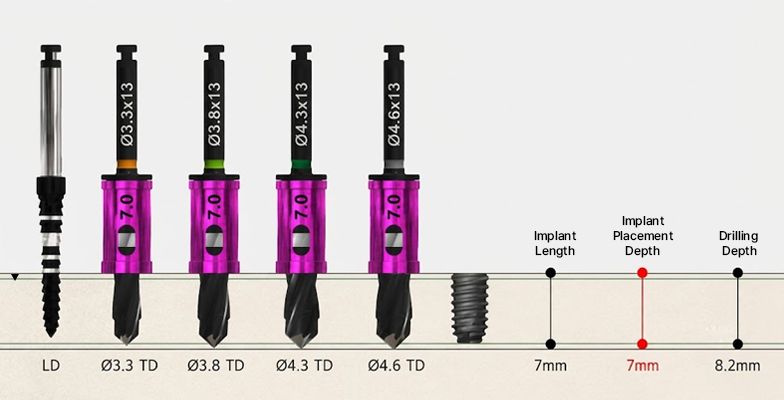

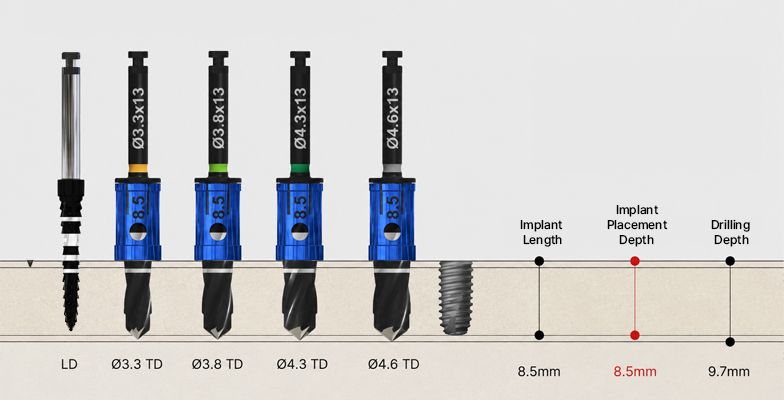

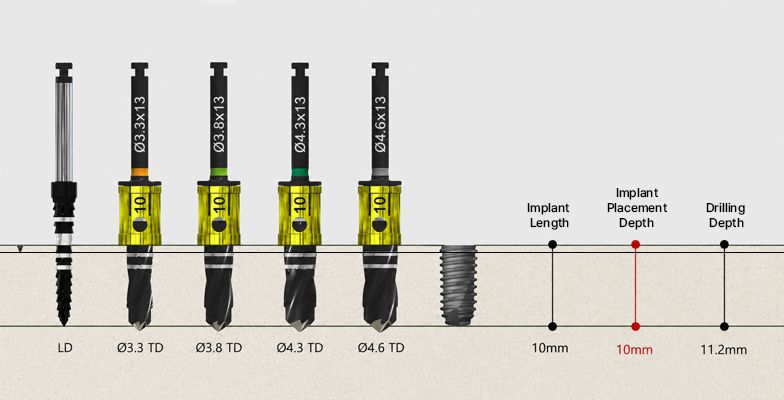

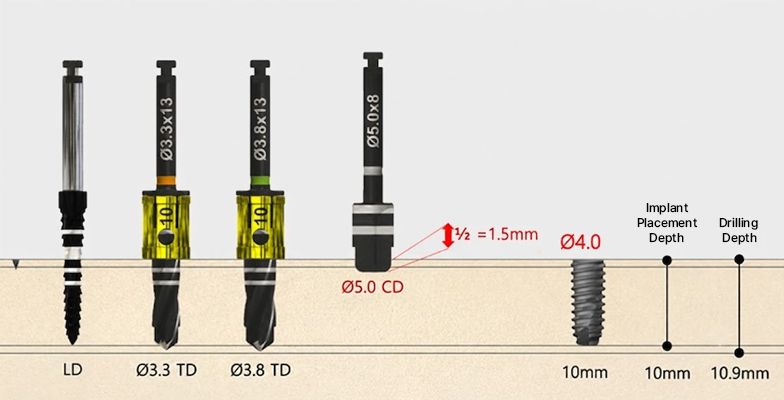

LＷ 7mm Stopper Protocol
When using drill stoppers, please note that switching to the next drill stopper will increase the drilling depth by 1.5 mm.
| Drill | Y-DIM | DRILLING DEPTH |
|---|---|---|
| Ø3.3 TD | 0.7 | Implant Length + Y-DIM |
| Ø3.8 TD | 0.9 | |
| Ø4.3 TD | 1.0 | |
| Ø4.6 TD | 1.2 |
